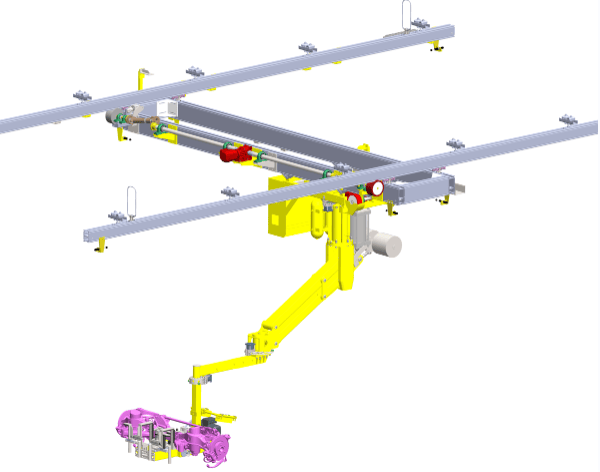

The main configuration is: steel structure, track system, track power system, and power manipulator system. The function of the track system is to increase the left and right front and back travel distance of the manipulator, thereby increasing the working area of the manipulator. The sliding friction of the aluminum alloy track is small, so the traction force of the manipulator using the aluminum alloy track is small under the same conditions. It is easier to move the manipulator left and right and front and back manually, and the aluminum alloy track is not easy to rust, which is the first choice for dust-free workshops. The price of KBK cast iron track has a greater advantage than that of aluminum alloy track. It is more suitable to use this type of track when there is no high demand for production rhythm and the frequency of use is not high. For heavy load-bearing situations, the track system needs to add a reduction motor drive system. According to the on-site space and on-site conditions, a variety of methods can be selected to achieve the best effect. The track-type power manipulator meets the use needs of a multi-station, is flexible and light to operate, greatly reduces the labor cost of multiple stations, and reduces the labor intensity of the stations.
